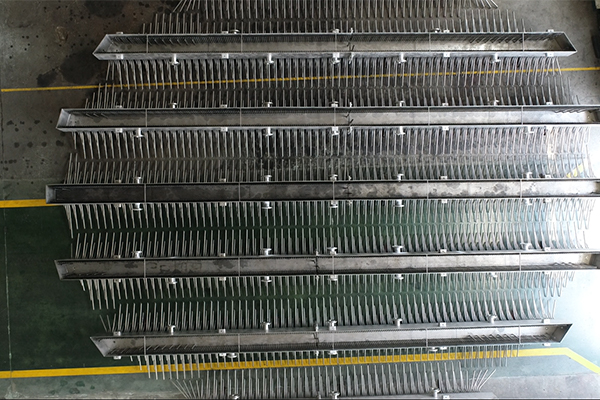

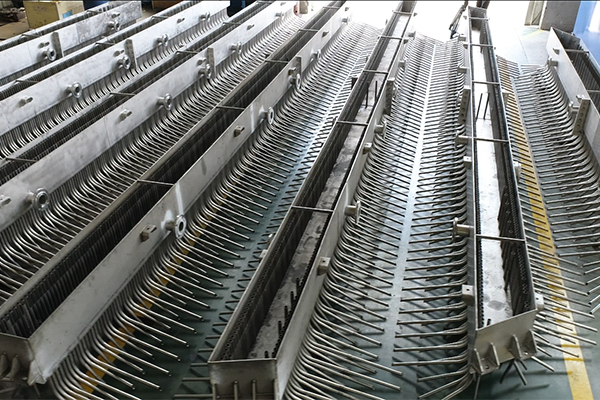

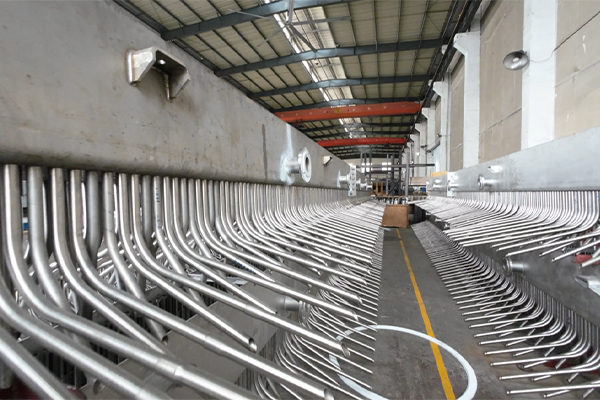

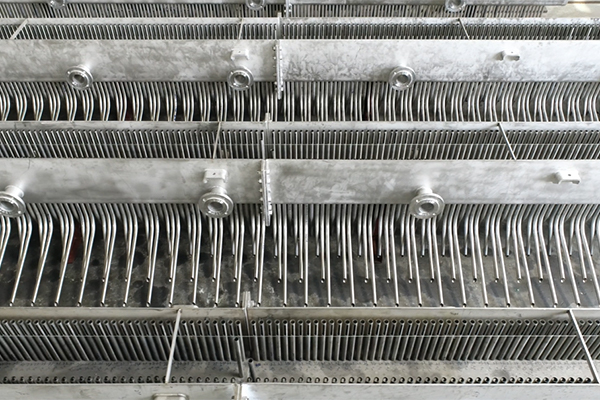

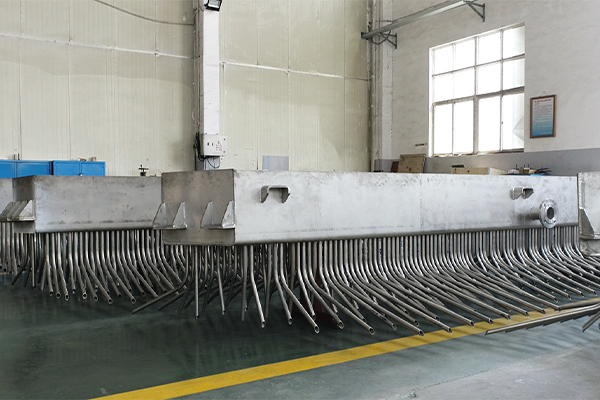

Tube-Trough Acid Distributor

فئات: معدات لصناعة حمض الكبريتيك

Tube-Trough Acid Distributor is made of high silicon austenitic stainless steel HD-1, which is jointly researched and developed by New Hongda and National Institute of Metal Research, Chinese Academy of Science (IMR). The quality is as good as international level, but the price is only one third of importing ones. The distributors have been successfully used in lots of sulfuric acid plants in China.

الدردشة الآن

وصف المنتج

descriصنشوئها:

Features of tube-trough acid distributor as following:

Acid distributing is not less than 42 points/m². It has a high distributing density and can distribute evenly, which increases moisture rate and mass transfer; (Points can be designed according to requirements.)
Overflow downcomers distribute evenly; gas flow is difficult to form short pass, reducing entrained mist;
Made of HD-1 alloy, high corrosion resistance without anodic protection, the service life can be above 10 years;
Since it is made of alloy, it will be easy for welding and assembling;
The distributor is designed by experts of institute with good structure, which is convenient for revamping of old plants;
The distributor is difficult to be blocked and working condition can be viewed.

التطبيقات:

The tube-trough acid distributor is widely used in drying towers and absorption towers of sulfuric acid industry. Its acid distribution performance directly impacts the production efficiency and operating costs of sulfuric acid manufacturing.

مواصفات المنتج

تحديد:

Here are some specifications of tube-trough acid distributor we have made:

Φ80,Φ250,Φ1500,Φ2600,Φ4700,Φ6498… ,Φ7500, Φ8998…

يمكننا التخصيص وفقًا لاحتياجاتك.

ميزة تنافسية:

The latest HD-3 overflow type acid distributor launched by NHD absorbs advantages of trough distributors and tubular distributors. It is approved as an ideal distributor by Nanjing Chemical institute:

Rational overflow structure, acid flows evenly and gently without splattering, low pressure loss;
Distributing holes equally spaced with 24 points/m²;
Assembly structure of main pipe and branches, easily removable;
Free section area as high as 68%;
Proprietary material HD-3 is a kind of rare earth alloy with Ni, Cr, Mo, Cu, and rare-earth metal, developed by Professor Huanan Liu of NHD’s Special Steel Institute. It features good anti-corrosion and high mechanical strength. In strong sulfuric acid, a smooth black compact film forms on the surface to protect the equipment.

General Product Information

مكان المنشأ:	جيانغسو
اسم العلامة التجارية:	هونغدا الجديدة
شهادة:	SGS ، ISO
رقم النموذج:

Product Commercial Terms

كمية الحد الأدنى للطلب:	1 مجموعة
سعر:	قابل للتفاوض
تفاصيل التغليف:	حالة حديدية جديرة بالبحر
موعد التسليم:	قابل للتفاوض
شروط الدفع:	t {{url_placeholder_0}} l {{url_placeholder_1}}
القدرة على التوريد:
