Step into the world of vacuum belt filters, where continuous solid-liquid separation meets efficiency and reliability. Perfect for industries like mining, chemicals, and environmental processing, these systems deliver dry filter cakes with minimal fuss. This guide unpacks their working principles, key features, and how NHD’s solutions elevate performance for high-volume operations.
Overview of Vacuum Belt Filter Technology
Vacuum belt filters are essential in modern industrial filtration systems, offering continuous and efficient solid-liquid separation. These systems utilize a moving filter cloth supported by a rubber belt and vacuum suction to extract liquid from slurry, forming a dewatered cake. This mechanism allows for uninterrupted processing, making it ideal for high-volume operations.
Definition and Core Components
At the heart of a vacuum belt filter lies its core components: filter cloth, rubber support belt, vacuum box, slurry feed system, washing unit, and discharge mechanism. A long strip of filter cloth is driven like a crawler belt in the center of the equipment, completing the entire process of automated operation from feeding, filtering, washing, slag removal, and filter cloth cleaning. The vacuum box beneath the belt applies negative pressure to draw filtrate through the cloth into drainage grooves and holes, collecting it efficiently.
Applications in Industrial Filtration
These filters are widely used across industries where robust and continuous filtration is required. It has been already widely used in industries of phosphoric acid, metallurgy, mining, chemical, environmental protection and desulfurization in power plants etc. Their adaptability makes them suitable for handling corrosive slurries or those requiring multiple wash stages—common in chemical processing or hydrometallurgy.
Continuous Filtration Mechanism
The efficiency of vacuum belt filters stems from their ability to operate continuously without manual intervention. Each stage of filtration is integrated into a seamless cycle that maintains consistent throughput.
Role of Vacuum Suction in Solid-Liquid Separation
Vacuum suction plays a pivotal role by creating a pressure differential that draws liquid through the porous media while retaining solids on top. When the slurry passes through, the vacuum box under the belt sucks, and the filtrate flows through the filter cloth into the groove, flows into the vacuum box from the drainage hole, and then is discharged and collected from the bottom of the vacuum box. This method ensures high filtration rates with minimal energy consumption.
Filtration Cycle: Feeding, Dewatering, Washing, and Discharge
The operational cycle begins with slurry feeding onto the moving filter cloth. As it progresses over vacuum zones:
- Dewatering removes free liquid.
- Multi-stage washing units rinse soluble contaminants.
- A scraper discharges cake into hoppers.
- The cloth is cleaned before returning to repeat its cycle.
The filter cake above the filter cloth is driven to the unloading area with the filter cloth, and unloaded into the hopper under the combined action of gravity and the scraper.
Key Parameters Influencing Performance
Performance depends on several controllable parameters:
- Vacuum level
- Cake thickness
- Cloth speed
- Wash water volume
High adaptability for equipment can realize the control of cake thickness, washing water, vacuum degree and running cycle etc. By optimizing these variables based on your process needs, you can maximize efficiency while maintaining product quality.

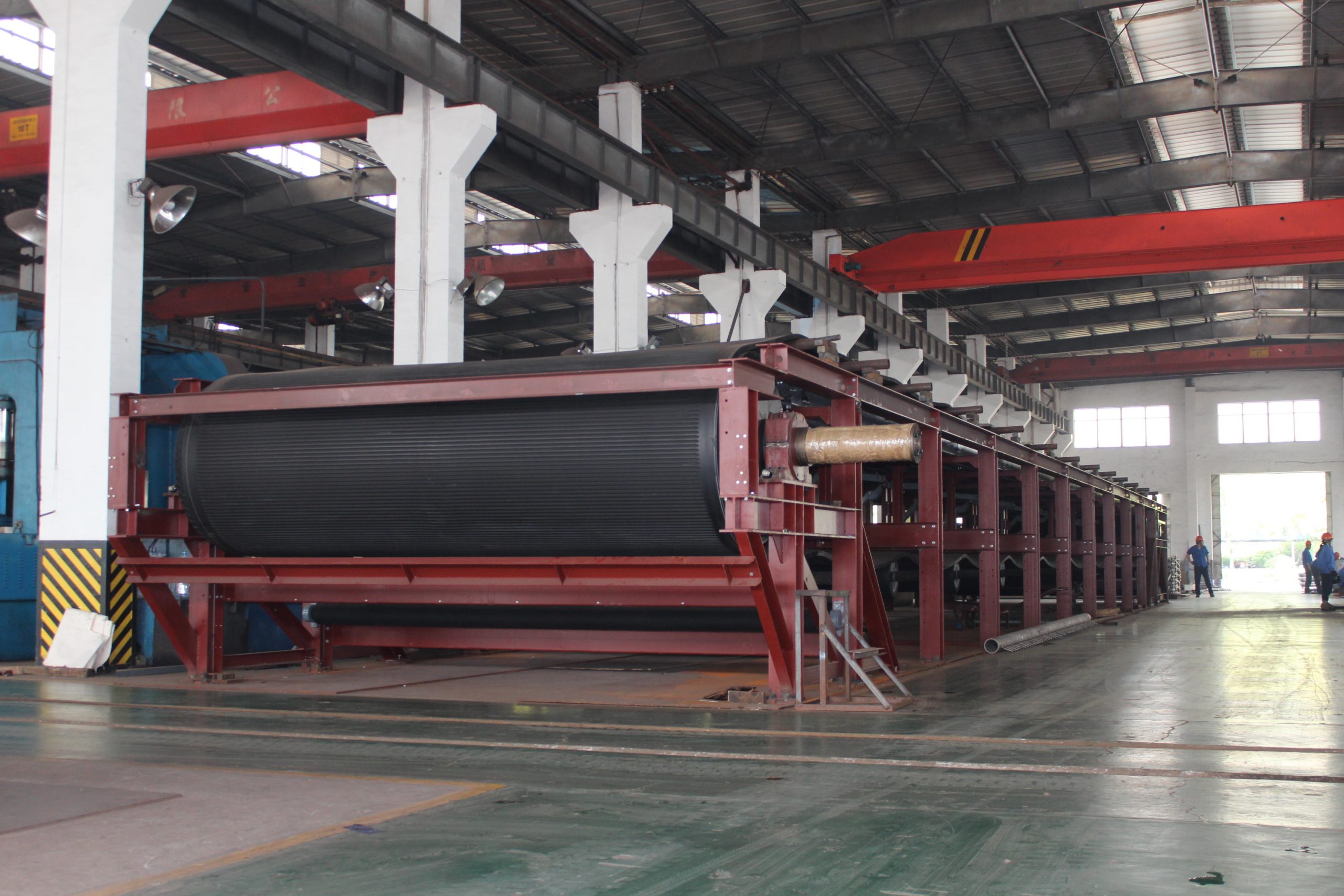

NHD Vacuum Belt Filters: Structure and Design Features
If you’re looking for precision-engineered filtration equipment tailored for demanding applications across sectors like mining or phosphate processing—look no further than NHD. With over two decades of expertise and more than 650 units installed globally since 2016 alone, this manufacturer offers solutions that blend innovation with reliability.
Modular Construction for Process Flexibility
One standout feature is modular design. Modularized designed heavy-duty frame is easy to remove, transport and assemble. An open field of vision can know the operating condition of equipment in the first time. This allows you to tailor systems according to space constraints or process requirements without compromising performance.
Advanced Sealing Systems to Minimize Leakage
Maintaining vacuum integrity requires precise sealing. Automatic lubrication system: Automatic lubrication of key lubrication points such as the upper and lower sealing surfaces of the filter ensures tight seals remain effective over time while reducing maintenance frequency—a major advantage when uptime matters most.
Material Selection for Corrosion and Wear Resistance
Durability is built-in through careful material selection. Steel structure anti-corrosion design combined with wear-resistant rubber belts extends service life even in harsh chemical environments. This design philosophy supports long-term performance without frequent replacements or downtime.
Process Optimization with NHD Vacuum Belt Filters
Beyond basic functionality lies optimization—where real gains are realized in throughput and cost-efficiency.
Enhancing Throughput and Cake Dryness
Thanks to features like multi-stage countercurrent washing. Good washing effect: better washing effect by multi-stage countercurrent washing type, these filters achieve higher cake dryness while maintaining fast cycles. The result? Less downstream drying load—and lower energy costs overall.
You may also consider integrating complementary systems such as Pan Vacuum Filters for batch processes where different separation characteristics are needed alongside continuous lines.
Integration with Upstream and Downstream Equipment
These filters integrate seamlessly within broader process lines—from slurry preparation tanks upstream to dryers or crystallizers downstream. Adjustments like quick-release rollers or liftable vacuum boxes vacuum box can be raised and lowered quickly simplifying maintenance while minimizing production interruptions during changeovers or cleanouts.
Comparative Advantages of NHD Solutions
What truly differentiates this solution provider isn’t just technical specs—but how those specs translate into operational value for you.
Energy Efficiency and Automation Capabilities
Energy-saving designs include large-diameter drives requiring smaller motors but delivering higher torque. Large diameter drive (China Patent Excellence Award in 2008): A circular track is used to support the filter, and a relatively small power drive motor can achieve a relatively large torque drive. Combined with automation-ready controls for tensioning or deviation correction units Large stroke tension device, and high response speed of cloth tension, these systems reduce manual labor while improving consistency.
Maintenance Accessibility and Operational Stability
Ease-of-maintenance features like open-frame access points or automatic cleaning systems mean fewer shutdowns—and faster restarts when they do occur. Easy operation, few moving components, low maintenance cost.
For projects demanding scalable solutions—from 10㎡ up to 160㎡—you’ll find both performance assurance and flexibility with this trusted partner.
FAQ
Q: What types of materials can be processed using a vacuum belt filter?
A: These filters handle slurries containing solids such as gypsum from desulfurization processes or phosphates from chemical production lines. Their corrosion-resistant build makes them suitable even for aggressive chemical environments.
Q: How does multi-stage washing improve filtration outcomes?
A: Multi-stage countercurrent washing enhances removal efficiency by progressively displacing contaminants using fresh wash water at each stage—maximizing purity while conserving water use.
Q: Can I integrate this system into an existing production line?
A: Yes. With modular frames and adjustable components like roller positions or liftable boxes for easy access head and tail roller positions can be adjusted quickly。 These filters are designed for seamless integration across diverse industrial setups.
