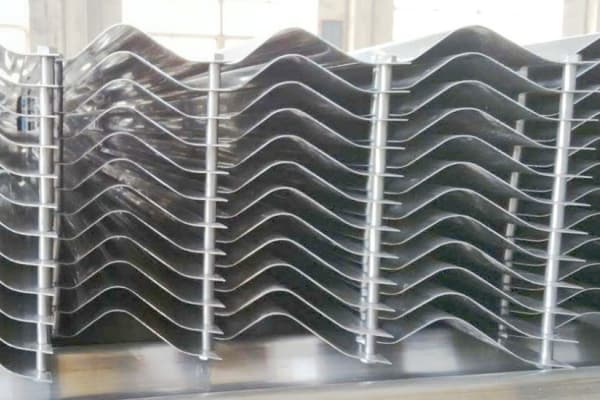

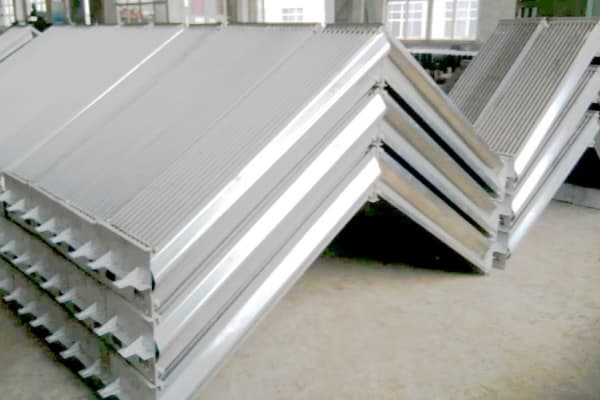

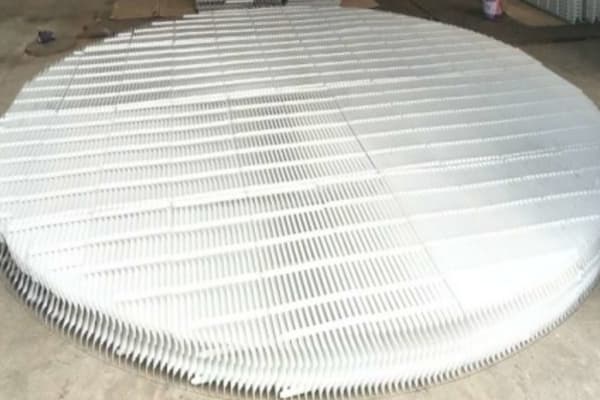

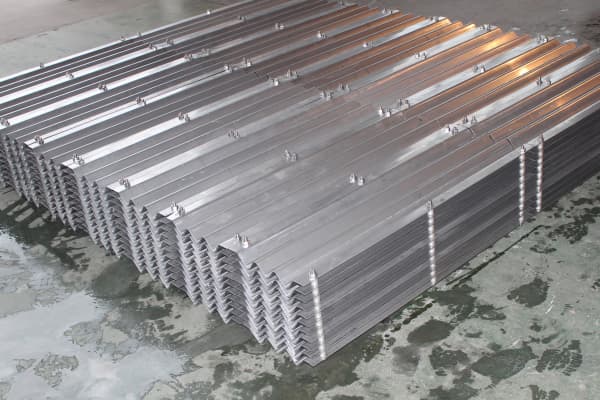

Chevron Vane Demister:1 level tubular and 2 levels waves

Description:

Principle of Chevron Vane demister: it depends on inertia and gravity effect of liquid drop in flue gas. When flue gas with liquid drop goes through wave channel, the flow will be changed directions continuously. Under the inertia and gravity, gas and liquid will be separated. Then liquid drops will be collected on the vanes and drain into washing tank under gravity effect after accumulating, also solid on the vanes will be washed into washing tank.

Applications:

Chevron Vane Demisters are widely used in chemical industries such as wet flue gas desulfurization, petroleum distillation towers, pharmaceutical evaporation systems, acid mist treatment etc.

Specifications:

The product can be customized according to customer requirements.

Competitive Advantage:

NHD’s Chevron Vane demister is featured with 1 level tubular and 2 levels waves. Design of fair shaped vane can reduce the pressure loss, without dead area for washing. And this demister won’t block due to self-cleaning of tubular demister and wave demisters with good washing system. Non-standard design can reduce blind area and improve active area.

All parts of wave Chevron Vane demister are cold formed by once pressing. There is no heat treatment or process in fabrication, so the material keeps its original chemical and physical properties without change of metallographic structure, to extend service life.
